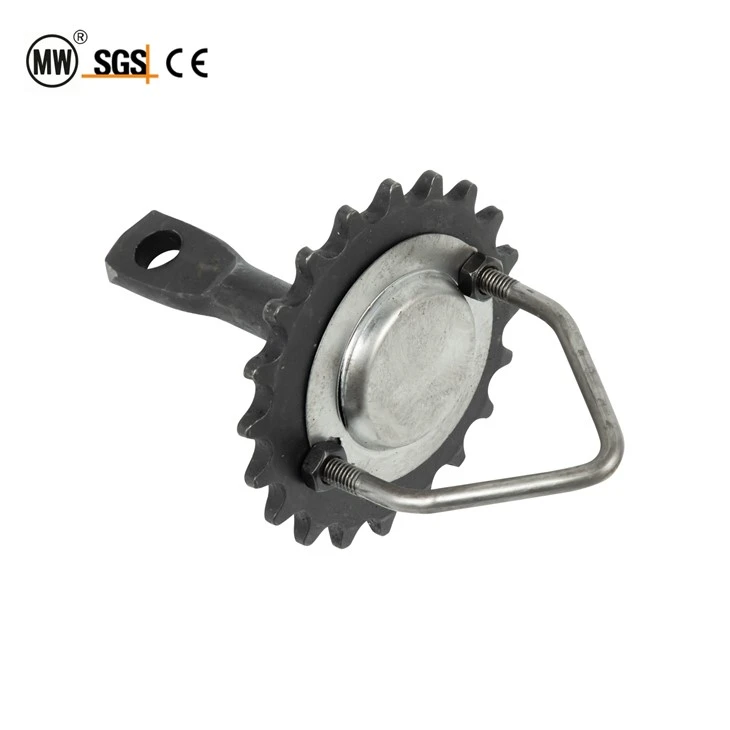

20-Tooth Rotating Hanger Fixture for Painting Line QXG250 Conveyor Chain System
The 20-tooth rotating hanger fixture is a key component designed for modern painting line conveyor systems, especially in overhead transport and continuous coating production environments. It is engineered to work with the Painting line chain QXG250 conveyor chain, providing stable rotation and synchronized movement during part handling and surface treatment processes.
Unlike conventional fixed carriers, this rotating structure improves positioning accuracy and reduces collision risks during multi-stage coating operations. It is widely used in automated industrial conveyor system chain layouts where consistent spacing and controlled rotation are required.
This model is also compatible with single guide conveyor chain and fixed hanging plate chain configurations, making it flexible for different production line designs. With reinforced structure and wear-resistant material selection, it is suitable for continuous-duty environments where heavy loads and long operating cycles are required.
In heavy industrial coating plants, the system performs as part of a heavy duty conveyor chain solution, ensuring smooth part transfer from pre-treatment to drying sections while maintaining alignment stability throughout the entire painting process.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | 20-Tooth Rotating Hanger Fixture |
| Compatible Chain | QXG250 Conveyor Chain |
| Application System | Painting Line Conveyor System |
| Material | Alloy Steel / Hardened Steel |
| Tooth Count | 20 Teeth |
| Surface Treatment | Anti-corrosion coating / optional galvanizing |
| Load Capacity | Heavy-duty industrial load (customizable) |
| Working Mode | Continuous rotation / synchronized conveying |
| Installation Type | Overhead rail mounting system |
Application Industries
Automotive painting lines and coating workshops
Industrial metal finishing and powder coating systems
Home appliance surface treatment production lines
Heavy machinery manufacturing conveyor systems
Steel structure anti-corrosion painting lines
Working Principle
The 20-tooth rotating hanger fixture operates through synchronized engagement with the conveyor drive system. As the Painting line chain QXG250 conveyor chain moves along the rail, the fixture engages with the drive mechanism and rotates consistently based on chain movement.
This controlled rotation ensures that suspended workpieces maintain optimal orientation throughout different painting stages. When integrated into an industrial conveyor system chain, the fixture helps maintain spacing accuracy while allowing smooth transitions between cleaning, spraying, curing, and cooling sections.
The rotation mechanism reduces manual adjustment needs and improves coating uniformity across complex geometries.
Engineering Selection & Environmental Guidelines
When selecting a 20-tooth rotating hanger fixture for a painting line system, engineers should evaluate the total load per hook, line speed, and required rotation frequency. For heavy-duty applications, pairing with a reinforced heavy duty conveyor chain is recommended to ensure long-term stability.
For high-throughput coating lines, the Painting line chain QXG250 conveyor chain is typically preferred due to its balanced load distribution and compatibility with automated handling systems. In compact layouts, a single guide conveyor chain configuration may be used to reduce space requirements while maintaining operational efficiency.
Installation Notes
Ensure correct alignment between chain and rotating teeth engagement points
Avoid overloading beyond rated capacity to prevent premature wear
Maintain lubrication on moving contact surfaces for smooth rotation
Check rail straightness before installation in long conveyor sections
Secure all fasteners with torque specifications recommended by system design
Environmental Conditions
Operating Temperature: -10°C to 180°C (depending on coating and lubrication system)
Working Environment: Suitable for spray paint, powder coating, and chemical mist zones
Load Condition: Designed for continuous medium to heavy industrial loads
Line Speed: Optimized for low to medium-speed overhead conveyor systems
Corrosion Resistance: Suitable for humid and chemically exposed painting line environments
FAQ
