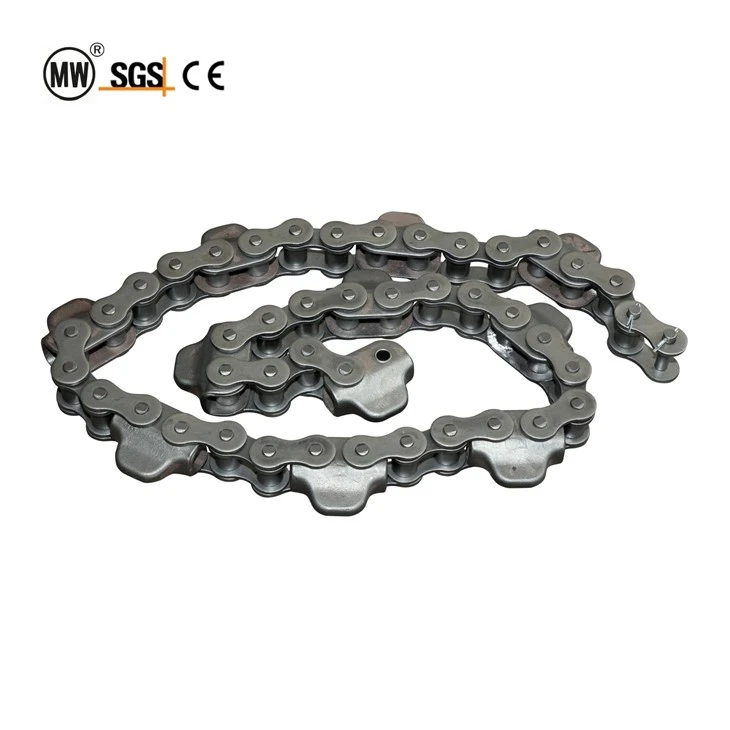

QXG150 Enclosed Track Overhead Conveyor Traction Chain

Choosing the correct QXG150 traction chain variant involves evaluating three decision axes: load magnitude, track routing complexity, and workpiece carrier attachment style. The following framework guides the selection process:

Load ceiling verification. The QXG150's 8 kg per-point capacity covers lightweight workpiece categories: small hardware brackets, electronic housings, plastic trim, and garment items. If any single carrier exceeds 8 kg (including fixture + product), step up to the QXG200 series (30 kg class) rather than overloading this chain.

Routing density assessment. The 150 mm pitch produces the tightest curve footprint in the QXG family. For facilities where conveyor paths must weave through narrow spray booths or wrap around existing floor equipment, this compact pitch delivers layout flexibility that heavier 200/250 mm chains cannot match.

Carrier attachment choice. Two hanger configurations are available within the QXG150 series: the fixed-plate variant (rigid mounting, minimal swing) for dip-tank and e-coat immersion lines, and the open-hanger variant (spring-clip quick-release) for multi-product finishing lines requiring frequent fixture changeover between production campaigns.

Drive sprocket compatibility. The standard 8-tooth drive sprocket for QXG150 provides adequate wrap angle for conveyor lines ≤100 m. Lines exceeding 200 m loop length should specify 10–12 tooth sprockets to distribute engagement force across more contact points and reduce single-tooth peak stress.

Correct installation of the QXG150 closed track traction chain within an enclosed-rail system requires adherence to seven critical checkpoints. Deviation from these protocols accelerates bearing wear, induces uneven tension, and may void manufacturer warranty:

Track internal surface integrity. Every square-section rail joint must present a flush internal surface with zero step height. Misaligned joints generate impact loading on wheel flanges that initiates micro-crack propagation over repeated pass cycles. Verify joint flatness using a precision straightedge before chain insertion.

Cross-joint directional orientation. QXG150 links are directional assemblies. The open face of each cross-joint must orient toward the direction of chain travel. Reverse installation causes guide-wheel interference at curve entry points and produces audible clicking that indicates immediate correction is needed.

Cross-pin retaining verification. After assembling each link pair, confirm that the cross-pin retaining clip or rivet head is fully seated and locked. Partially engaged retaining features represent the leading cause of in-service link separation events in enclosed track overhead chain installations.

Initial tension calibration. Set initial chain tension to 3–5% of allowable tensile force (approximately 75–125 N for QXG150). Over-tensioning increases bearing load and wheel wear rate; under-tensioning produces catenary sag and sprocket skip-tooth engagement.

Empty-run commissioning. Before loading workpiece carriers, run the chain empty for a minimum of 30 minutes. Monitor for irregular sounds at drive sprocket engagement zones and at each horizontal/vertical curve transition. Any rhythmic clicking or grinding noise indicates misalignment that must be corrected prior to production start.

No mixed-wear chain splicing. Never splice new QXG150 links into a previously worn chain run. Differential pitch elongation between new and worn segments generates uneven load distribution and accelerates failure at splice boundaries. Replace entire loop sections rather than individual links.

Lubrication port positioning. For conveyor lines exceeding 500 m total loop length, install drip-feed lubrication cups at intervals of every 80–100 m along the track. Position lubrication access points near horizontal curve exit zones where bearing loading peaks during direction-change transitions.

Compact 150 mm pitch geometry. The shortest pitch in the QXG family enables the tightest horizontal turn radii and most compact vertical bend transitions. This spatial efficiency makes the QXG150 traction chain the default choice for congested finishing-line layouts where floor space allocation restricts curve dimensions.

Sealed steel-ball bearing wheel assemblies. Each guide and running wheel houses a permanently lubricated ball-bearing cartridge pre-filled with high-temperature grease rated to 200 °C. Rolling friction coefficient remains below 0.003 across the full temperature envelope, eliminating the progressive drag escalation characteristic of plain-bushing wheel designs.

Square-section enclosed track contamination shield. The 57 × 47 × 3.5 mm closed track channel physically excludes paint overspray, powder-coat particles, cleaning-solution mist, and airborne grit from all bearing surfaces and articulation joints - the primary degradation accelerators in open-rail conveyor chain deployments.

40Mn alloy steel forged link construction. Link plates are precision forged from 40 manganese high-strength alloy steel followed by controlled quench-temper processing. This thermo-mechanical sequence aligns grain structure with tensile load direction, producing fatigue resistance that stamped or laser-cut alternatives cannot replicate.

Bi-directional cross-joint articulation. The cross-block pivot architecture at each link junction permits simultaneous horizontal and vertical flexing without transitional splice sections. This enables continuous three-dimensional routing through spray booths, drying ovens, and cool-down passages in a single unbroken chain loop.

Low acoustic output operation. Precision wheel assemblies with sealed bearings generate <58 dB(A) at rated speed under standard load conditions. This noise level complies with indoor production-environment regulations and eliminates the acoustic shielding investment required for louder open-track chain systems.
