QXG100 Load Trolley
Hangzhou Ocean Industry Co., Ltd. is one of the most experienced manufacturers and suppliers of qxg100 load trolley in China. Welcome to wholesale customized qxg100 load trolley at competitive price from our factory. Good service and quality products are available.

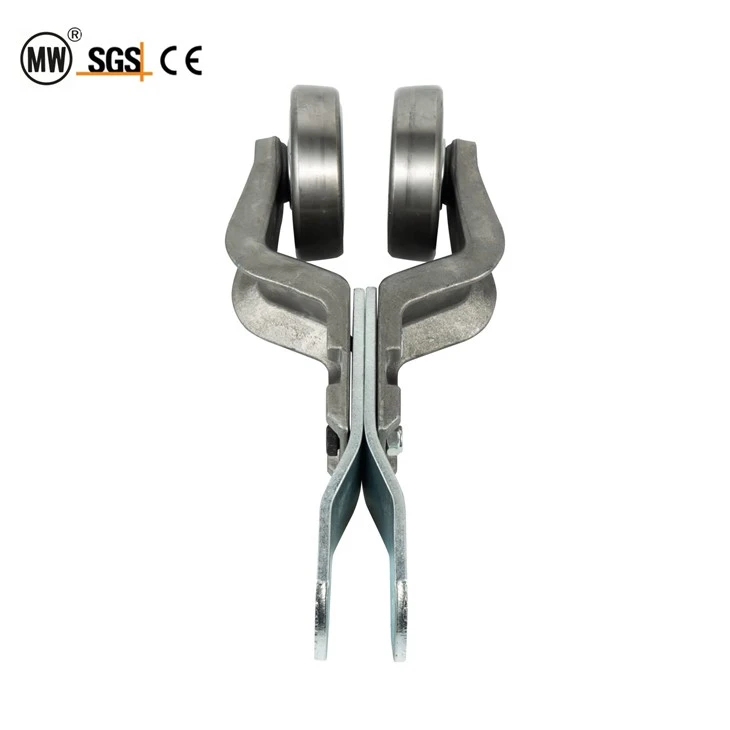

Industrial QXG100 100kg Load Trolley and Matched Heavy-Duty Conveyor Chain
In high-output industrial finishing, a trolley is only as reliable as the chain that propels it. Hangzhou Ocean Industry Co., Ltd. presents the QXG100 Load Trolley, a high-capacity carriage meticulously engineered to pair with the QXG100 overhead track system. Unlike generic components, this system is a dedicated heavy duty conveyor chain solution where every dimension-from the chain pitch to the pin diameter-is mathematically optimized for a consistent 100kg suspended load.
This painting line chain QXG100 conveyor chain represents a significant leap in structural stability. By increasing the shear resistance of the pins and calibrating the hanger "ear" dimensions to match the 100kg trolley chassis, we have eliminated the mechanical "slop" that often causes vibration in a single guide conveyor chain. Whether you are transporting heavy engine components or large-scale metal fabrications, the QXG100 system ensures that your industrial conveyor system chain maintains perfect synchronization. The result is a smooth, surge-free transit through your painting line, ensuring that automated spray systems can apply coatings with microscopic precision across every square inch of the workpiece.
Advanced Technical Features: The QXG100 Advantage
Matched System Synergy: The trolley and the painting line chain QXG100 conveyor chain are designed as a single unit, ensuring that load stress is distributed evenly across the pitch links.
Reinforced Pin & Bushing: Featuring over-sized heat-treated pins specifically sized to handle the 100kg dynamic forces without elongation.
Optimized Pitch Stability: The 100mm-class pitch is calibrated to provide maximum flexibility in turns while maintaining the rigidity needed for a heavy duty conveyor chain.
Heavy-Duty "Ear" Design: The hanging lugs (ears) on the chain are widened and thickened to provide a secure, zero-play connection to the fixed hanging plate chain interface.
High-Temperature Bearing Seals: Each trolley wheel is equipped with a dual-lip seal to prevent grease contamination in 250°C curing environments.
Technical Parameter Matrix: QXG100 Series Specifications
| Specification Item | Technical Data | Engineering Note |
|---|---|---|
| System Model | QXG100 (Matched Set) | Optimized for 100kg Loads |
| Maximum Load/Trolley | 100 kg | Verified via 15,000-cycle test |
| Chain Pitch | 100 mm (Calibrated) | High-tensile alloy steel |
| Pin Diameter | Reinforced Series | High-shear resistance forged steel |
| Hanger (Ear) Thickness | Industrial Grade | Anti-fatigue geometry |
| Compatible Track | Reinforced C-Type Rail | Single guide conveyor chain fitment |
| Finish Type | Electrophoresis / Zinc | Acid-resistant for painting line use |
Engineering Selection & Implementation Strategy
Engineering Selection Advice
When transitioning to a 100kg capacity, the "Point Load" vs. "Line Load" ratio is critical. Hangzhou Ocean Industry recommends the QXG100 system for facilities where workpieces consistently range between 60kg and 100kg. Because the chain pitch and pin dimensions are specifically tuned for this weight class, it prevents the "chain surging" effect common when using an under-rated industrial conveyor system chain. If your process involves steep vertical inclines, the QXG100's reinforced ears provide the necessary safety factor to prevent link separation.
Applicable Environmental Conditions
Thermal Dynamics: Rated for continuous operation in curing ovens up to 220°C (peak 250°C).
Atmospheric Resilience: Built to withstand the high-humidity phosphate and alkaline wash zones of a painting line.
Speed Management: Best suited for constant-velocity travel up to 10 m/min.
Industrial Application Scenarios
Automotive Sub-Assembly: Moving engine blocks, transmissions, and heavy suspension components on a heavy duty conveyor chain.
Agricultural Equipment: Transporting heavy plow blades and tractor attachments through automated painting line booths.
Industrial Valve Manufacturing: Handling large cast-iron valve bodies and pump housings in an industrial conveyor system chain environment.
Installation & Working Principle
Operational Principle
The QXG100 system operates on a synchronized mechanical loop. The drive unit engages the painting line chain QXG100 conveyor chain, which is supported by the 100kg trolleys. The precision-engineered pins and pitch ensure that as the chain navigates turns, the trolleys remain perfectly perpendicular to the track. The workpieces are suspended from the fixed hanging plate chain which is bolted directly to the chain's reinforced ears, transforming the weight into a stable, linear force within the track.
Common Installation Best Practices
Pin Seating: During the assembly of the QXG100 chain, ensure every pin is fully seated and locked; the 100kg load requires absolute joint integrity.
Hanger Ear Alignment: Ensure the fixed hanging plate chain is not twisted when bolted to the chain ears to avoid lateral stress on the single guide conveyor chain.
Tensioner Calibration: Set the automatic tensioner to compensate for the higher mass of the 100kg system during initial startup.
