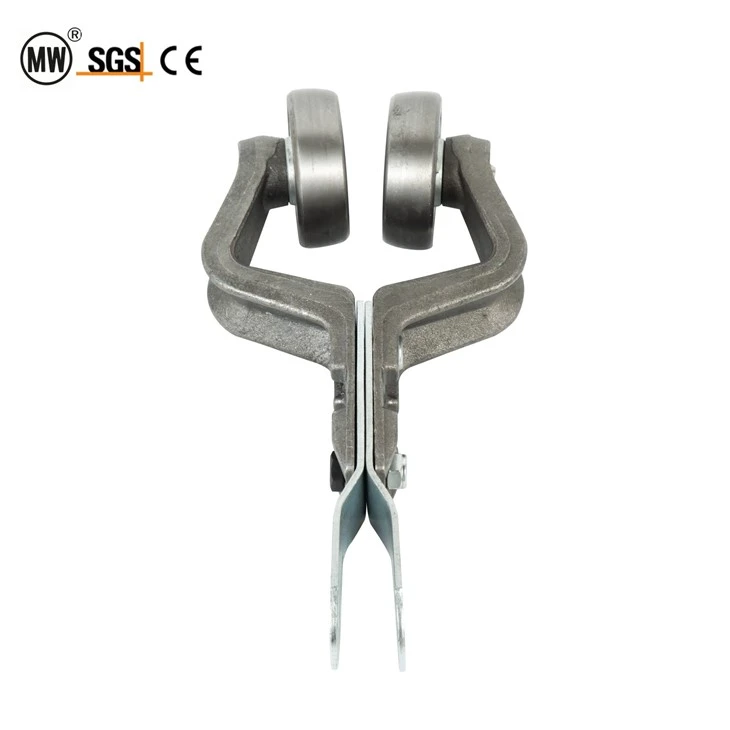

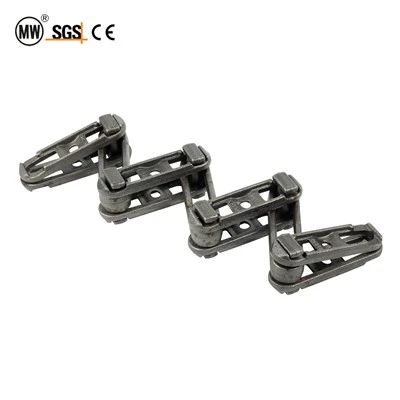

X348 Load Trolley
Hangzhou Ocean Industry Co., Ltd. is one of the most experienced manufacturers and suppliers of x348 load trolley in China. Welcome to wholesale customized x348 load trolley at competitive price from our factory. Good service and quality products are available.
Industrial X348 Forged Rivetless Load Trolley for Heavy-Duty I-Beam Conveyors
In the realm of heavy-capacity material handling, the X348 trolley represents the "Gold Standard" for reliability and mechanical simplicity. Hangzhou Ocean Industry Co., Ltd. introduces the X348 Load Trolley, a precision-forged carriage specifically engineered for the 3-inch pitch rivetless chain series. While facilities handling lighter components often rely on the painting line chain QXG250 conveyor chain, the transition to bulky automotive chassis, engine blocks, or industrial steel frames necessitates the rugged open-track architecture that only an X348 system can provide.
As a cornerstone of any high-throughput industrial conveyor system chain, this trolley is designed to navigate an S3x5.7 I-beam with absolute stability. Unlike a single guide conveyor chain, the 348 trolley utilizes a dual-sided wheel configuration that straddles the beam, providing a centralized center of gravity that is essential for high-temperature painting line environments. By utilizing drop-forged brackets and heat-stabilized bearings, Hangzhou Ocean Industry ensures that your heavy duty conveyor chain operates with minimal surging and maximum uptime. This trolley is not just a carrier; it is a specialized engineering tool designed to bridge the gap between heavy-duty logistics and precision surface finishing.
Advanced Technical Features: Engineered for Performance
Drop-Forged Bracket Strength: The side brackets are forged from high-alloy steel, providing superior fatigue resistance compared to cast or stamped alternatives.
Precision-Ground Wheels: Features high-carbon steel wheels with induction-hardened treads to ensure smooth travel and long life on the I-beam flange.
High-Temperature Bearing Architecture: Engineered by Hangzhou Ocean Industry to perform without seizure in curing ovens reaching up to 260°C.
Rivetless Chain Integration: Specifically designed for tool-free assembly with X348 forged links, allowing for rapid maintenance of the industrial conveyor system chain.
Triple-Seal Protection: Bearings are shielded to prevent the ingress of powder overspray and chemical mists common in a painting line.
Technical Specification Matrix: X348 Series
| Technical Attribute | Specification Details | Engineering Note |
|---|---|---|
| Model Number | X348-HT (Heavy-Duty) | Standard 3-Inch Series |
| Load Capacity (Single) | 100 kg - 150 kg | Per single trolley unit |
| Load Capacity (Tandem) | Up to 300 kg | Using a load-sharing bar |
| Material Grade | 40Cr / 45Mn2 / Alloy Steel | Heat-treated for toughness |
| Compatible Track | S3x5.7 I-Beam | Standard industrial rail |
| Bearing Class | ABEC-1 High-Temp Series | Sealed for life |
| Chain Compatibility | Heavy duty conveyor chain (X348) | Rivetless forged design |
Engineering Selection & Environmental Guidelines
Engineering Selection Advice: Single vs. Tandem Configurations
The X348 system is remarkably modular. Hangzhou Ocean Industry recommends the single trolley setup for workpieces weighing up to 100kg. For loads between 100kg and 300kg, a "Tandem" configuration-consisting of two X348 trolleys connected by a load bar-is required. This setup prevents localized overloading of the I-beam flanges and ensures the industrial conveyor system chain maintains a smooth curve radius. Unlike a fixed hanging plate chain which is limited by link strength, the 348 trolley system allows you to scale your load capacity simply by adding more carriages.
Applicable Environmental Conditions
Thermal Range: Continuous operation in temperatures from -20°C up to +260°C.
Chemical Exposure: Highly resistant to acidic phosphating and alkaline degreasing vapors found in the pre-treatment zone of a painting line.
Operating Speed: Optimized for stable travel speeds between 0.5 m/min and 15 m/min.
Industrial Application Scenarios
Automotive Powertrain: Moving engine blocks and transmission housings through automated industrial conveyor system chain routes.
Heavy Fabricated Steel: Finishing large steel frames, railings, and construction brackets on a heavy duty conveyor chain.
Agricultural Equipment: Handling heavy tractor components and plow blades through high-temperature painting line curing zones.
Installation & Working Principle
Operational Principle
The X348 trolley operates as an "Open-Track" carriage. The two symmetrical brackets are bolted together around the I-beam, capturing the X348 rivetless chain center link. As the drive unit pulls the chain, the trolley wheels roll along the bottom flange of the I-beam. This design is superior to a single guide conveyor chain for heavy loads because it allows for easy cleaning and inspection of the tracking surface. The load is suspended from a forged attachment at the bottom of the trolley, ensuring the force is always pulled vertically through the center of the beam.
Installation Best Practices
Beam Joint Grinding: Ensure all I-beam joints are ground perfectly smooth; any "bump" will cause the heavy duty conveyor chain to surge, potentially affecting the finish in the spray booth.
Bracket Bolt Torque: Periodically check the torque on the bracket bolts; the high-vibration environment of a painting line can lead to loosening over long cycles.
Initial Run-In: After the first 48 hours of operation, inspect the wheel treads for any "flaking," which indicates a misalignment of the I-beam track.
