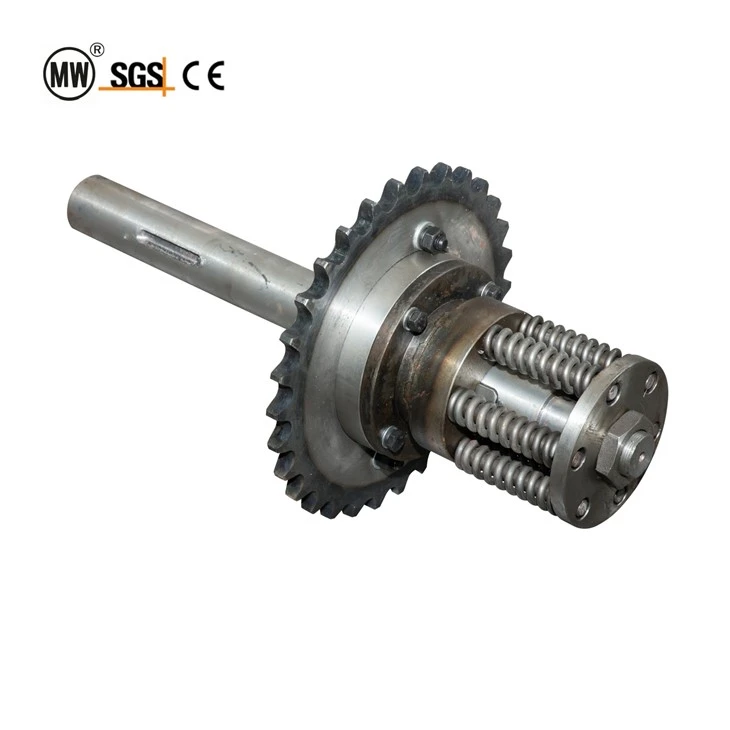

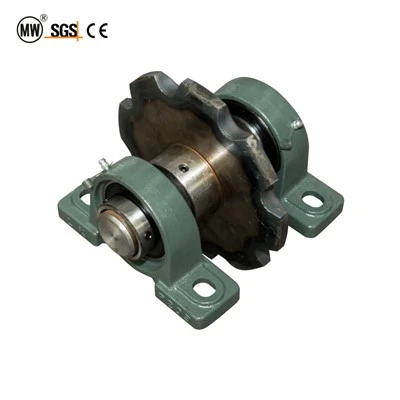

QXG150 Overhead Conveyor Spring-Buffered Drive Shaft Assembly

QXG150 Overhead Conveyor Spring-Buffered Drive Shaft Assembly

High-precision QXG150 drive shaft assembly with spring buffering from Hangzhou Ocean Industry Co., Ltd. Protects your industrial conveyor system chain from surge.
Send Inquiry
Product Introduction

Hangzhou Ocean Industry Co., Ltd. is one of the most experienced manufacturers and suppliers of qxg150 overhead conveyor spring-buffered drive shaft assembly in China. Welcome to wholesale customized qxg150 overhead conveyor spring-buffered drive shaft assembly at competitive price from our factory. Good service and quality products are available.



Industrial QXG150 Overhead Conveyor Spring-Buffered Drive Shaft Assembly

In a high-velocity painting line, the moment of startup is the most critical for mechanical longevity. Hangzhou Ocean Industry Co., Ltd. has engineered the QXG150 Spring-Buffered Drive Shaft Assembly to act as the protective "heartbeat" of your automation system. Unlike rigid drive units that transmit 100% of motor torque instantly, our spring-buffered design absorbs initial kinetic energy, effectively neutralizing the "chain surging" effect. This is particularly vital when managing a single guide conveyor chain where sudden jerks can lead to workpiece oscillation or mechanical fatigue.

While many facilities rely on the larger painting line chain QXG250 conveyor chain for massive loads, the QXG150 series remains the standard for high-density, medium-load finishing. Our drive shaft assembly ensures that the industrial conveyor system chain remains under constant, balanced tension. By integrating high-tensile alloy springs with a precision-machined shaft, we provide a solution that protects the fixed hanging plate chain from snap-tension during stop-start cycles. For those operating a heavy duty conveyor chain in demanding 24/7 environments, this assembly is the definitive upgrade for reducing maintenance costs and ensuring a perfectly smooth flow through spray booths and curing ovens.

The Engineering Problem That Spring Buffering Solves

Every overhead conveyor loop stores mechanical energy as elastic deformation along its chain path. On a line spanning 80 meters or more, this stored energy behaves like a coiled spring: the motor-end links begin moving milliseconds before the tail-end links respond. When a rigid drive coupling transmits motor torque without any absorption stage, the full rotational impulse hits the chain instantaneously.

Three measurable effects occur at that moment:

Chain Surging (Velocity Differential)

The drive-end links accelerate while tail-end links remain stationary. The velocity delta creates a compression wave that travels backward through the chain loop. At the wave front, individual link pins experience transient loads that can reach 2–3× the steady-state operating tension.

Workpiece Oscillation

On fixed hanging plate chains with suspended workpieces, the surge impulse propagates upward through the hanger assembly. Components weighing 8 kg per suspension point (the QXG150 rated load) can swing through 5–10 mm of lateral displacement. In a spray booth with 300 mm clearance between parts, this is enough to cause contact damage.

Sprocket Tooth Jump

When chain tension momentarily drops near zero on the slack side of the drive sprocket (a phenomenon known as "tension collapse" during the surge reflection cycle), the chain can lift off the sprocket teeth. Minimum 120° wrap angle on the drive sprocket is the standard countermeasure, but a spring buffer attacks the root cause: it prevents the tension collapse from occurring in the first place.

Engineering takeaway: A spring-buffered drive shaft inserts a controlled compliance stage between motor output and chain input. The compression springs compress first, then transfer torque. This "soft start" characteristic decouples the motor's acceleration curve from the chain's inertial response.

Technical Parameter Matrix: QXG150 Drive Specifications

Data verified by the engineering department of Hangzhou Ocean Industry Co., Ltd.

Technical Metric Specification Value System Engineering Note
Model Designation HOI-QXG150-SBSA Spring-Buffered Power Series
Maximum Torque Capacity 1,200 N.m High-safety factor for industrial use
Buffer Type Heavy-Duty Compression Spring Non-linear shock absorption
Shaft Material 40Cr / 45# Quenched Steel High-shear resistance
Compatible Chain QXG150 / QXG200 Enclosed track compatible
Bearing Life 12,000+ Operating Hours Industrial-grade shielded bearings
System Category Industrial conveyor system chain Drive-end traction component



How the Buffer Mechanism Works: A Component-by-Component Breakdown

The QXG150 drive shaft assembly (model designation HOI-QXG150-SBSA) operates as a mechanical low-pass filter positioned between the geared motor output and the drive sprocket. Below is the torque transmission pathway, traced from motor coupling to chain engagement.

Stage 1 - Motor-Side Coupling

The geared motor (standard recommendation: 0.75 kW or 1.1 kW, variable-frequency drive with 1:10 speed ratio) connects to the input flange of the drive shaft assembly. Motor output speed at the coupling face typically ranges from 0.26 to 12.1 m/min linear chain speed, depending on the selected gear reduction ratio.

Stage 2 - Compression Spring Pack

The distinguishing element of this assembly: a heavy-duty compression spring set mounted concentrically around the main shaft. As motor torque rises from zero at startup, the springs compress approximately 15–25 mm (calibrated range) before the shaft's drive dogs engage. This compression phase typically completes within 50–200 milliseconds.

The spring pack performs two functions simultaneously: it shifts the torque-rise slope from near-vertical (rigid coupling) to a graduated ramp, and it acts as a dynamic tension compensator during running mode, absorbing minor chain-length variations caused by thermal expansion in oven zones.

Stage 3 - Precision-Machined Drive Dogs

Once spring compression reaches the calibrated threshold, CNC-milled drive dogs on the output side of the shaft engage with the drive sprocket. The zero-backlash interface between dog and sprocket pocket ensures that torque transfer, once initiated, is positive and slip-free. This is particularly important for QXG150/QXG200 enclosed-track chains where the cross-hinge block design allows multi-plane articulation and any lost motion at the drive point would amplify into tracking errors at curves.

Stage 4 - Bearing Assembly & Temperature Sealing

The shaft rides on industrial-grade shielded deep-groove ball bearings rated for 12,000+ operating hours under continuous duty. Bearing seals employ high-temperature grease capable of maintaining lubricity at ambient temperatures up to 200°C, a requirement driven by oven-adjacent mounting positions where radiated heat from curing zones raises the local ambient well above workshop levels.

Complete Specification Reference

Data verified against engineering documentation from Hangzhou Ocean Industry Co., Ltd. Unless otherwise noted, values represent the standard ,QXG150-SBSA configuration.

Parameter Category Metric Specification Engineering Context
Drive Assembly Model Designation HOI-QXG150-SBSA Spring-Buffered Shaft Assembly, QXG150-series
Maximum Torque Capacity 1,200 N·m High safety factor for industrial cycling loads
Buffer Mechanism Type Heavy-Duty Compression Spring Non-linear shock absorption characteristic
Shaft Material Primary Material 40Cr Quenched & Tempered Steel High shear resistance; preferred for high-cycle applications
Alternative Material 45# Medium-Carbon Quenched Steel Cost-optimized variant for moderate-duty lines
Chain Compatibility Primary Chain Series QXG150 (150 mm pitch) 8 kg single-point load; 2.83 kg/m chain weight
Compatible Upgrade QXG200 (200 mm pitch) 30 kg single-point load; adapter kit required
Track Interface Enclosed Track Section 57 × 47 × 3.5 mm Square-section enclosed rail, QXG150 standard
Track Weight 4.36 kg/m Reference for structural support calculations
Operating Envelope Chain Speed Range 0.5 – 12 m/min 1:10 variable-frequency drive ratio
Ambient Temperature Range −10°C to +200°C Continuous operation verified
System Tension Limit Up to 15,000 kg (total loop) Optimized load envelope for QXG150-class systems
Service Life Bearing Life (Rated) 12,000+ operating hours L10 bearing life under rated load
Surface Protection Electrophoresis coating Corrosion barrier rated for chemical pretreatment zones

Shaft Material Selection: 40Cr vs. 45# Steel in Drive Applications

Selecting the shaft material is a design decision that directly affects torque fatigue life and maintenance intervals. Hangzhou Ocean Industry offers two material grades for the QXG150 drive shaft, each with distinct application profiles.

product key technologies

01.

40Cr Alloy Steel (Chromium-Bearing)

Carbon content: 0.37–0.44%

Chromium addition: 0.80–1.10%

Post-quench hardness: HRC 48–55 (surface), HRC 35–42 (core)

Tensile strength after QT: ≥980 MPa

Yield strength after QT: ≥785 MPa

Fatigue endurance limit: ~420 MPa (rotating bending)

Best for: Lines exceeding 80 m; 24/7 operation; frequent stop-start cycles

Chromium content improves hardenability - deeper case depth means longer service before re-machining

02.

45# Medium-Carbon Steel

Carbon content: 0.42–0.50%

No chromium alloying element

Post-quench hardness: HRC 42–50 (surface), HRC 28–35 (core)

Tensile strength after QT: ≥600 MPa

Yield strength after QT: ≥355 MPa

Fatigue endurance limit: ~280 MPa (rotating bending)

Best for: Lines under 60 m; single-shift operation; budget-constrained projects

Lower material cost (~60–70% of 40Cr), but proportionally shorter fatigue life under cyclic torque loading



Why Quenching and Tempering Matters

Both materials are supplied in the quenched-and-tempered (QT) condition. The QT process transforms the as-rolled microstructure into tempered martensite, which provides the optimal balance of surface hardness (wear resistance at the drive dog interface) and core toughness (impact resistance during surge events). An improperly tempered shaft - one that is too hard at the core - becomes brittle and susceptible to catastrophic fracture under the torsional shock loads characteristic of conveyor startup.



Core Engineering Features & Advantages

Kinetic Surge Protection: The dual-spring buffering mechanism absorbs the "jerk" at startup, preventing the heavy duty conveyor chain from jumping or experiencing sudden tension spikes.

Precision Machined Drive Dogs: The drive sprocket interface is CNC-milled to ensure a zero-backlash engagement with the single guide conveyor chain.

High-Temp Bearing Seals: Engineered by Hangzhou Ocean Industry to perform reliably near curing ovens, where temperatures can stress standard drive components.

Tension Self-Regulation: The spring buffer provides a secondary layer of tension management, compensating for minor thermal expansion in the painting line chain QXG250 conveyor chain or similar loops.

Corrosion-Resistant Housing: The assembly is treated with an electrophoresis finish to survive the humid, chemical-laden air of a painting line pre-treatment zone.

Working Principle: The Buffer Cycle

The QXG150 Drive Shaft Assembly functions as a mechanical damper between the gearbox and the chain loop. When the motor starts, the torque is first applied to the compression springs. Only after the springs compress to a calibrated level does the full force transmit to the industrial conveyor system chain. This delay, while lasting only milliseconds, is enough to smooth out the acceleration curve. As the fixed hanging plate chain begins to move, the spring maintains a slight pressure, acting as a dynamic tensioner that absorbs the impact of workpieces entering horizontal turns or vertical inclines.

Industrial Application Scenarios

Electronics & Home Appliances: Providing pulse-free motion for single guide conveyor chain systems transporting delicate plastic housings.

Furniture & Woodworking: Ensuring stable transport of large metal cabinets through a high-temperature painting line.

Automotive Sub-Assemblies: Reliable power transmission for heavy duty conveyor chain loops handling door panels and dashboard parts.

Engineering & Selection Guidelines

Engineering Selection Advice

When selecting a drive shaft assembly, the "Startup Load" is more important than the "Running Load." Hangzhou Ocean Industry recommends the QXG150 spring-buffered model for any line exceeding 80 meters in total length. The longer the loop, the more "elasticity" the chain has; the spring buffer acts to dampen this elasticity, preventing the "bellows effect" where the tail end of the industrial conveyor system chain moves at a different speed than the drive end.

Applicable Environmental Conditions

Load Range: Optimized for total system tensions up to 15,000kg.

Temperature Range: Continuous operation from -10°C to +200°C.

Speed Management: Best suited for constant or variable speeds from 0.5 m/min to 12 m/min.

Common Installation Best Practices

Shaft Verticality: Ensure the drive shaft is perfectly perpendicular to the track to prevent uneven wear on the single guide conveyor chain rollers.

Spring Calibration: Periodically check the spring compression distance; a fully bottomed-out spring means the heavy duty conveyor chain is overloaded or requires better lubrication.

FAQ

Q: 1:Can I use the QXG150 drive shaft on a QXG250 track?

A:No. The shaft and sprocket dimensions are specific to the QXG150 pitch. For 250mm systems, please inquire about our painting line chain QXG250 conveyor chain drive units.

Q: 2:How often should the drive assembly be lubricated?

A:We recommend an inspection of the main bearing every 500 operating hours. The spring buffer itself requires minimal maintenance.

Q: 3. Does the spring-buffered design reduce motor wear?

A: Absolutely. By reducing the "locked rotor" torque spike at startup, it significantly extends the life of your gearbox and motor.

Q: 4: Is this compatible with a fixed hanging plate chain?

A: Yes, it is the primary drive source used to propel systems that carry workpieces via fixed hanging plate chain attachments.

Q: 5. How long is the lead time for a complete drive assembly?

A: Standard sizes are 25–30 days. Fully custom assemblies with special shaft machining or high-temperature bearings require 35–45 days after drawing approval.
