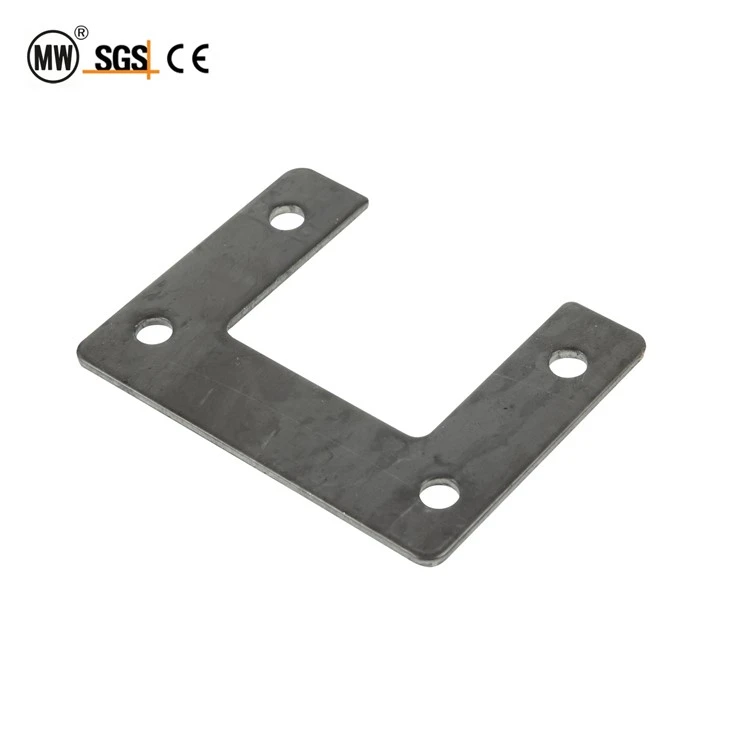

QXG250 Flange Plate

Hangzhou Ocean Industry Co., Ltd. is one of the most experienced manufacturers and suppliers of qxg250 flange plate in China. Welcome to wholesale customized qxg250 flange plate at competitive price from our factory. Good service and quality products are available.



In a high-velocity automated finishing environment, the mechanical stress placed on a painting line chain QXG250 conveyor chain is concentrated primarily at its connection points. Hangzhou Ocean Industry Co., Ltd. manufactures the QXG250 Flange Plate (also known as the connecting link plate) to serve as the structural backbone of these critical joints. This component is not a simple fastener; it is a precision-engineered plate designed to maintain the exact 250mm pitch required for smooth, vibration-free operation.

As an essential part of an industrial conveyor system chain, the QXG250 flange plate must withstand constant tensile fluctuations while passing through high-temperature curing ovens. By utilizing high-grade alloy steel and advanced heat-treatment protocols, we ensure that our plates prevent "link-stretch"-a common failure mode in lower-quality heavy duty conveyor chain systems. Whether you are assembling a new single guide conveyor chain or upgrading an existing track, these flange plates provide the secure mounting foundation for a fixed hanging plate chain, ensuring that your products move with surgical precision through spray booths and chemical treatment zones.

Technical Attribute	Specification Details	System Engineering Note
Model Designation	QXG250 Flange Plate	Optimized for QXG series
Compatible Pitch	250 mm	Standard industrial layout
Material Composition	40Cr / 45# High-Carbon Steel	Enhanced fatigue resistance
Manufacturing Process	Precision Cold Stamping / Forging	Aligned grain structure
Surface Hardness	HRC 38-42 (Quenched & Tempered)	Balanced for durability
Compatible System	Single Guide Conveyor Chain	Universal QXG track fitment
Finish	Electrophoresis / Zinc Plating	Acid and humidity resistant

Anti-Fatigue Geometry: The QXG250 flange plate features a rounded-edge design that eliminates stress risers, significantly extending the service life of the heavy duty conveyor chain.

Precision Hole Alignment: CNC-calibrated pin holes ensure that the painting line chain QXG250 conveyor chain remains perfectly linear, reducing friction against the guide rails.

High-Temperature Stability: Engineered by Hangzhou Ocean Industry to perform reliably in baking ovens reaching temperatures of up to 260°C without dimensional warping.

Optimized Load Distribution: The plate thickness is calibrated to transfer the vertical load from a fixed hanging plate chain into the horizontal tensile strength of the conveyor.

Corrosion Barrier: Every plate is treated to resist the aggressive chemical vapors and phosphate mists common in an industrial conveyor system chain pre-treatment tunnel.

Engineering Selection Advice

When evaluating flange plates for an industrial conveyor system chain, engineers should calculate the "Joint Shear Force." For lines exceeding 200 meters, Hangzhou Ocean Industry recommends our reinforced QXG250 plates, which feature a 15% increase in cross-sectional area. This added material volume prevents the pin holes from becoming oval-shaped over years of high-cycle operation, which is the primary cause of chain "surging."

Applicable Environmental Conditions

Thermal Tolerance: Continuous operation from -20°C to +250°C.

Chemical Stability: Rated for high resistance to alkaline degreasers and acidic pre-treatment solutions used in a painting line.

Load Rating: Designed for high-tensile environments where chain tension is maintained via automatic take-up units.

Commercial Vehicle Painting: Connecting long-distance loops of a painting line chain QXG250 conveyor chain for truck cabs and frames.

Heavy Duty Shelving Lines: Providing the link integrity for heavy duty conveyor chain systems in automated powder coating plants.

HVAC & Radiator Manufacturing: Ensuring stable transport in an industrial conveyor system chain for bulky metal heat exchangers

Working Principle

The QXG250 Flange Plate acts as the side wall of the chain link. It captures the chain pins, transforming individual links into a continuous, high-tensile loop. In a single guide conveyor chain, these plates provide the flat surface area necessary for the rollers to stay aligned. Furthermore, the flange plate is often the primary mounting point for the fixed hanging plate chain, meaning it translates the weight of the workpiece directly into the track's drive mechanism.

Common Installation Best Practices

Symmetrical Mounting: Ensure that both side plates of the industrial conveyor system chain are installed with the same orientation to prevent "twisting" under load.

Pin Seating Verification: Check that the cotter pins or snap rings are fully engaged against the QXG250 flange plate to prevent the chain from splitting.

Run-In Inspection: After the first 48 hours of operation, inspect for any signs of "scuffing" on the plate faces, which may indicate track misalignment.
